Tutorial - STEP2

1. Overview

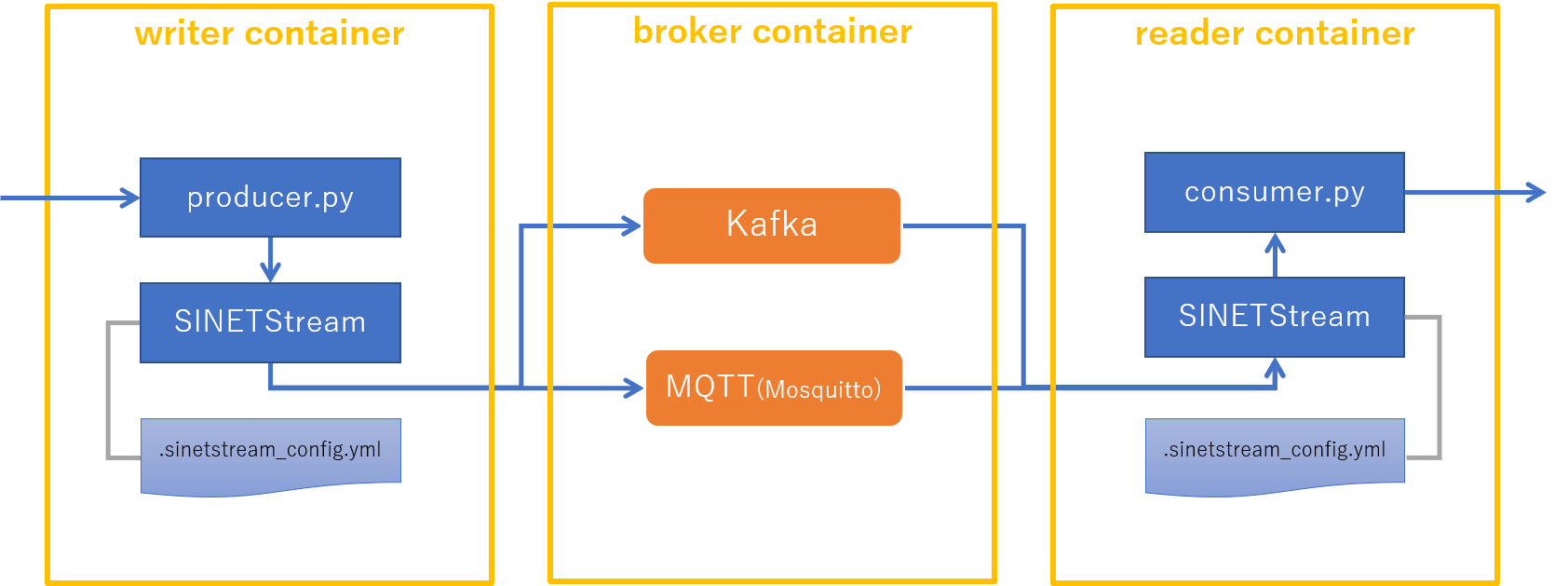

The components used in this tutorial are shown in the figure below.

configuration STEP2

The role of those components shown in Quick Start Guide are as follows.

Writer sends messages to Broker via SINETStream
Reader receives messages from Broker via SINETStream
Broker aggregates and delivers messages from Writer to Reader, and separates the endpoints from each other.

In the STEP1 of the tutorial, Writer, Reader, and Broker were executed on the same machine. In the STEP2, in contrast, Writer, Reader, and Broker are executed on each different machines.

Prerequisite

Docker Engine must be installed on the machines where you run the tutorial.
- You can find information about installing Docker Engine in Links to Docker Engine installation instructions.
Make the TCP/1883 and TCP/9092 ports available on the Broker machine.
- These ports will be used by the broker for listening TCP.
Enable access to TCP/1883 and TCP/9092 ports on the Broker machine from the Writer and Reader machines.
- Please set your firewall policy so that these communications are not blocked.

Notational conventions

There will be six environments: the host environment and the container environment for each of Writer, Reader, and Broker. We use the following conventions for distinguishing them.

Role	Environment	Hostname	Username	IP address
Broker	host environment	host-broker	user00	`192.168.1.XXX`
Reader	host environment	host-reader	user00	-
Writer	host environment	host-writer	user00	-
Broker	container environment	broker	user01	-
Reader	container environment	reader	user01	-
Writer	container environment	writer	user01	-

Please change the values of the host environment according to your actual machines. In the command execution examples below, the execution environment is indicated by the hostname and the username of the command prompt. For example, execution of a command on the Writer’s container environment is shown as follows.

[user01@writer]$ ls

In the above example, the username is user01 and the hostname is writer in the Writer’s container environment. The Writer’s host environment would be shown as follows.

[user00@host-writer]$ ls

2. Prepare the execution environment

Prepare three environments for Broker, Reader, and Writer, in this order. Open the terminal for three machines and perform the operations as follows.

2.1. Prepare Broker

2.1.1. Prepare the backend system

Run the backend messaging systems (Kafka and MQTT) used by SINETStream in a Docker container.

Execute the following command in the Broker’s host environment.

[user00@host-broker]$ docker run -d --name broker --hostname broker \
                      -p 1883:1883 -p 9092:9092 harbor.vcloud.nii.ac.jp/sinetstream/tutorial:1.8

Show the status to confirm that the container has started successfully.

[user00@host-broker]$ docker ps -l
CONTAINER ID        IMAGE                        COMMAND                  CREATED              STATUS              PORTS                                            NAMES
xxxxxxxxxxxx        sinetstream/tutorial:1.8   "/usr/local/bin/supe…"   About a minute ago   Up About a minute   0.0.0.0:1883->1883/tcp, 0.0.0.0:9092->9092/tcp   broker

If STATUS is shown as Up, the container has started successfully.

In the started container, the broker of the messaging systems, i.e., Kafka and MQTT (Mosquitto), are running. The processes running in the container can be checked as follows.

[user00@host-broker]$ docker exec -t broker ps ax
  PID TTY      STAT   TIME COMMAND
?        Ss     0:00 /usr/bin/python3 /usr/local/bin/supervisord -n -c /et
?        Sl     0:05 java -Xmx1G -Xms1G -server -XX:+UseG1GC -XX:MaxGCPaus
?        S      0:00 /usr/sbin/mosquitto -c /etc/mosquitto/mosquitto.conf
?        Sl     0:01 java -Xmx512M -Xms512M -server -XX:+UseG1GC -XX:MaxGC
pts/0    Rs+    0:00 ps ax

The role of each process shown in the above example is as follows.

PID 1
- init process
- Manages the services running in this container
PID 9
- The Kafka broker
PID 10
- The MQTT (Mosquitto) broker
PID 12
- ZooKeeper
- The service used by Kafka to store settings, configuration information, etc.
PID 822
- The ps command executed to show this process list.

2.2. Prepare Reader

Prepare the Reader’s environment in a Docker container.

2.2.1. Start the Reader’s container environment

Execute the following command in the Reader’s host environment.

[user00@host-reader]$ docker run -d --name reader --hostname reader -e ENABLE_BROKER=false \
                      --add-host=broker:192.168.1.xxx harbor.vcloud.nii.ac.jp/sinetstream/tutorial:1.8

Specify the IP address of the Broker in your environment in place of 192.168.1.XXX.

Show the status to confirm that the container has started successfully.

[user00@host-reader]$ docker ps -l
CONTAINER ID        IMAGE                        COMMAND                  CREATED             STATUS              PORTS                NAMES
xxxxxxxxxxxx        sinetstream/tutorial:1.8   "/usr/local/bin/supe…"   About a minute ago  Up About a minute   1883/tcp, 9092/tcp   reader

If STATUS is shown as Up, the container has started successfully.

Here we run the same container image as the Broker’s one, but the -e ENABLE_BROKER = false option prevents Broker from being started. Show the status to confirm it.

[user00@host-reader]$ docker exec -t reader ps ax
  PID TTY      STAT   TIME COMMAND
    1 ?        Ss     0:00 /usr/bin/python3 /usr/local/bin/supervisord -n -c /et
   30 pts/0    Rs+    0:00 ps ax

Unlike the status of the Broker’s container, here the Kafka broker, the MQTT broker and ZooKeeper are not running.

The --add-host option specified when starting the Reader’s container is for put the Broker’s IP address into the /etc/hosts file in the Reader’s container. This option is required because the server name must be resolved for the Kafka broker to work. Show the /etc/hosts file in the Reader’s container to confirm that the Broker’s IP address is registered.

[user00@host-reader]$ docker exec -t reader cat /etc/hosts
127.0.0.1       localhost
::1     localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
192.168.1.XXX   broker
172.17.0.3      reader

The Broker’s IP address specified when starting the container is shown in place of 192.168.1.XXX. The Reader’s IP address will differ depending on your environment.

2.2.2. Install SINETStream

Install the Python3 library of SINETStream on the container environment. First, log in to the container environment from the Reader’s host environment.

[user00@host-reader]$ docker exec -it -u user01 reader bash

Next, install the library of SINETStream on the container environment. Please execute the following command.

[user01@reader]$ pip3 install --user sinetstream-kafka sinetstream-mqtt
Collecting sinetstream-kafka
(omit)
Successfully installed avro-python3-1.10.0 kafka-python-2.0.2 paho-mqtt-1.5.1 promise-2.3 pycryptodome-3.9.9 pyyaml-3.13 sinetstream-1.4.0 sinetstream-kafka-1.4.0 sinetstream-mqtt-1.4.0 six-1.15.0

Finally, if the message Successfully installed ... is shown, the library has been successfully installed. To show the list of installed Python 3 libraries, use the following command.

[user01@reader]$ pip3 list
Package           Version
----------------- --------
avro-python3      1.10.0
kafka-python      2.0.2
paho-mqtt         1.5.1
pip               20.2.4
promise           2.3
pycryptodome      3.9.9
PyYAML            3.13
setuptools        50.3.2
sinetstream       1.4.0
sinetstream-kafka 1.4.0
sinetstream-mqtt  1.4.0
six               1.15.0
supervisor        4.2.1

The Versions of other libraries than SINETStream may differ from the above example.

2.2.3. Prepare Reader program and configuration file

Below is the procedure.

Create a directory for Reader
Prepare the SINETStream configuration file
Prepare the Reader program

In this section, the command is executed in the container environment. We use the same container environment as in section 2.2.2.

Create a directory and change to that directory.

[user01@reader]$ mkdir -p ~/sinetstream/reader
[user01@reader]$ cd ~/sinetstream/reader

Prepare the SINETStream configuration file. Download the configuration file prepared for this tutorial from GitHub.

[user01@reader]$ ss_url=https://raw.githubusercontent.com/nii-gakunin-cloud/sinetstream/main
[user01@reader]$ curl -O ${ss_url}/docs/tutorial/.sinetstream_config.yml

Download the sample program of Reader that uses the SINETStream Python3 API from GitHub. Grant execute permission to the program.

[user01@reader]$ curl -O ${ss_url}/python/sample/text/consumer.py
[user01@reader]$ chmod a+x consumer.py

Verify that the above procedure has been performed correctly. Make sure that the directories and files are the same as in the example below.

[user01@reader]$ pwd
/home/user01/sinetstream/reader
[user01@reader]$ ls -a
.  ..  .sinetstream_config.yml  consumer.py

2.3. Prepare Writer

Prepare Writer in the container environment. Below is the procedure.

2.3.1. Start the Writer’s container

Execute the following command in the Writer’s host environment.

[user00@host-writer]$ docker run -d --name writer --hostname writer -e ENABLE_BROKER=false \
                      --add-host=broker:192.168.1.xxx harbor.vcloud.nii.ac.jp/sinetstream/tutorial:1.8

Specify the Broker’s IP address in place of 192.168.1.XXX.

Show the status to confirm that the container has started successfully.

[user00@host-writer]$ docker ps -l
CONTAINER ID        IMAGE                        COMMAND                  CREATED             STATUS              PORTS                NAMES
xxxxxxxxxxxx        sinetstream/tutorial:1.8   "/usr/local/bin/supe…"   About a minute ago  Up About a minute   1883/tcp, 9092/tcp   writer

If STATUS is shown as Up, the container has started successfully.

Since you specified the -e ENABLE_BROKER=false option, Broker will not run in the container. Show the status to confirm it.

[user00@host-writer]$ docker exec -t writer ps ax
  PID TTY      STAT   TIME COMMAND
    1 ?        Ss     0:00 /usr/bin/python3 /usr/local/bin/supervisord -n -c /et
   31 pts/0    Rs+    0:00 ps ax

Also, since you specified the --add-host option, the Broker’s IP address is put into the /etc/hosts file in the Writer’s container. Show the /etc/hosts file to confirm it.

[user00@host-writer]$ docker exec -t writer cat /etc/hosts
127.0.0.1       localhost
::1     localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
192.168.1.XXX   broker
172.17.0.4      writer

The Broker’s IP address specified when starting the container is shown in place of 192.168.1.XXX. The Writer’s IP address will differ depending on your environment.

2.3.2. Install SINETStream

Install the Python3 library of SINETStream on the container environment. First, log in to the container environment from the Reader’s host environment.

[user00@host-writer]$ docker exec -it -u user01 writer bash

Next, install the library of SINETStream on the container environment. Please execute the following command.

[user01@writer]$ pip3 install --user sinetstream-kafka sinetstream-mqtt
Collecting sinetstream-kafka
(omit)
Successfully installed avro-python3-1.10.0 kafka-python-2.0.2 paho-mqtt-1.5.1 promise-2.3 pycryptodome-3.9.9 pyyaml-3.13 sinetstream-1.4.0 sinetstream-kafka-1.4.0 sinetstream-mqtt-1.4.0 six-1.15.0

Finally, if the message Successfully installed ... is shown, the library has been successfully installed. To show the list of installed Python 3 libraries, use the following command.

[user01@writer]$ pip3 list
Package           Version
----------------- --------
avro-python3      1.10.0
kafka-python      2.0.2
paho-mqtt         1.5.1
pip               20.2.4
promise           2.3
pycryptodome      3.9.9
PyYAML            3.13
setuptools        50.3.2
sinetstream       1.4.0
sinetstream-kafka 1.4.0
sinetstream-mqtt  1.4.0
six               1.15.0
supervisor        4.2.1

The Versions of other libraries than SINETStream may differ from the above example.

2.3.3. Prepare Writer program and configuration file

Below is the procedure.

Create a directory for Writer
Prepare the SINETStream configuration file
Prepare the Writer program

In this section, the command is executed in the container environment. We use the same container environment as in section 2.3.2.

Create a directory and change to that directory.

[user01@writer]$ mkdir -p ~/sinetstream/writer
[user01@writer]$ cd ~/sinetstream/writer

Prepare SINETStream configuration file. Download the configuration file prepared for this tutorial from GitHub.

[user01@writer]$ ss_url=https://raw.githubusercontent.com/nii-gakunin-cloud/sinetstream/main
[user01@writer]$ curl -O ${ss_url}/docs/tutorial/.sinetstream_config.yml

Download the sample program of Writer that uses the SINETStream Python3 API from GitHub. Grant execute permission to the program.

[user01@writer]$ curl -O ${ss_url}/python/sample/text/producer.py
[user01@writer]$ chmod a+x producer.py

Verify that the above procedure has been performed correctly. Make sure that the directories and files are the same as in the example below.

[user01@writer]$ pwd
/home/user01/sinetstream/writer
[user01@writer]$ ls -a
.  ..  .sinetstream_config.yml  producer.py

3. Run Reader and Writer

Run Reader and Writer to confirm that messages can be sent and received via SINETStream.

SINETStream supports Kafka and MQTT(Mosquitto) as backend messaging systems. First, make sure that you can send and receive messages to/from the Kafka broker. After that, confirm that you can send and receive messages to/from the MQTT broker by changing the settings (without changing the program).

3.1. To send and receive messages to/from Kafka brokers

Thereafter, you will execute the Reader and Writer programs at the same time. Open two terminals in the host environment to run them.

Run Reader

In the terminal for Reader, log in to the container environment from the host environment. Please execute the following command.

You do not need to execute it if you are already logged in to the container environment.

[user00@host-reader]$ docker exec -it -u user01 reader bash

Change to the directory for Reader.

[user01@reader]$ cd ~/sinetstream/reader

Run the Reader program. In the argument, the service name of the Kafka broker service-tutorial-kafka is specified.

[user01@reader]$ ./consumer.py -s service-tutorial-kafka
Press ctrl-c to exit the program.
: service=service-tutorial-kafka

The service name specified in the command line is shown after the colon(:).

Run Writer

In the terminal for Writer, log in to the container environment from the host environment. Please execute the following command.

You do not need to execute it if you are already logged in to the container environment.

[user00@host-writer]$ docker exec -it -u user01 writer bash

Change to the directory for Writer.

[user01@writer]$ cd ~/sinetstream/writer

Run the Writer program. In the argument, the service name of the Kafka broker service-tutorial-kafka is specified.

[user01@writer]$ ./producer.py -s service-tutorial-kafka
Press ctrl-c to exit the program.
: service=service-tutorial-kafka

The service name specified in the command line is shown after the colon(:).

Send and receive messages

In the terminal for Writer, enter some text and hit the Enter (Return) key. The text will be sent as a message to the Kafka broker.

The Reader program receives the message from the Kafka broker and shows it in the terminal. Check that the message you sent from Writer is shown in the terminal for Reader.

Verify that the message is being delivered by Broker

Temporarily stop Broker to make sure that the messages sent by Writer are being delivered by Broker.

Execute the following command in the Broker’s host environment to stop the Broker’s container.

[user00@host-broker]$ docker stop broker

Try to send a message from the terminal for Writer using producer.py. Since Broker is stopped, Reader cannot receive the message from Writer, and you will see nothing shown in the terminal for Reader.

Once confirmed, execute the following command in the Broker’s host environment to restart the Broker container.

[user00@host-broker]$ docker start broker

Stop Reader and Writer

Stop the sample programs of Reader and Writer. Please type ctrl-c at each terminal.

3.2 To send and receive messages to/from MQTT broker (Mosquitto)

Perform the same operation as for the Kafka broker. Confirm that messages can be sent and received via the MQTT broker. In the argument, specify the service name of the MQTT broker service-tutorial-mqtt in place of service-tutorial-kafka in the above example.

Run Reader

Execute the following command in the terminal for Reader.

[user01@reader]$ ./consumer.py -s service-tutorial-mqtt
Press ctrl-c to exit the program.
: service=service-tutorial-mqtt

The current directory of the terminal for Reader is assumed to be the Reader’s directory in the container environment.

Run Writer

To execute the following command in the terminal of Writer.

[user01@writer]$ ./producer.py -s service-tutorial-mqtt
Press ctrl-c to exit the program.
: service=service-tutorial-mqtt

The current directory of the terminal for Writer is assumed to be the Writer’s directory in the container environment.

Send and receive messages

Perform the same operations as for the Kafka broker. In the Writer’s terminal enter some text and hit the Enter (Return) key. Check that the text is shown in the Reader’s terminal.

Stop Reader and Writer

Once the messages have been transmitted, stop the sample programs of Reader and Writer. Please type ctrl-c at each terminal.

3.3. Stopping and deleting containers

Finally, stop and delete the container used in this tutorial.

Operations on containers should be performed on the host environment. To log out from the container environment, execute exit within the container.

[user01@reader]$ exit
exit
[user00@host-reader]$

After logging out of the host environment, execute the following command on each machine.

Broker

[user00@host-broker]$ docker stop broker
[user00@host-broker]$ docker rm broker

Reader

[user00@host-reader]$ docker stop reader
[user00@host-reader]$ docker rm reader

Writer

[user00@host-writer]$ docker stop writer
[user00@host-writer]$ docker rm writer

4. About SINETStream

Here is a brief description of the SINETStream configuration file and the API used in this tutorial.

The description in this page is exactly the same as the one in STEP1.

4.1. Configuration file

The contents of the SINETStream configuration file .sinetstream_config.yml is as follows.

service-tutorial-kafka:
    type: kafka
    brokers: "broker:9092"
    topic: topic-tutorial-kafka
    value_type: text

service-tutorial-mqtt:
    type: mqtt
    brokers: "broker:1883"
    topic: topic-tutorial-mqtt
    value_type: text

The configuration file contains hierarchical keys and values in YAML format.

The top level key is the service name defined in SINETStream. In the above example, service-tutorial-kafka and service-tutorial-mqtt are the service name. The service name is a label to collectively handle various parameters related to the broker. The service name specified in the arguments of the Reader and Writer sample programs corresponds to this label defined in the configuration file.

Specify the parameters related to the broker in the child element of the service name. The parameters corresponding to the service name service-tutorial-kafka are as follows.

    type: kafka
    brokers: "broker:9092"
    topic: topic-tutorial-kafka
    value_type: text

Below is a brief description of each parameter.

type
- Specify the type of the messaging system.
- Use kafka, mqtt, etc.
brokers
- Specify the address of the broker.
- The format of the address is the host name and port number concatenated by a colon.
topic
- Specify the topic name to/from which the messages are sent and received.
value_type
- Specify the message type.
- One of the following values can be used.
  - text
  - byte_array
- The text type used in the tutorial specifies that the message is of type string

Please refer to the user guide for more information about configuration files.

4.2. SINETStream API

Reader

In the Reader sample program consumer.py, the SINETStream API is used as follows.

with MessageReader(service) as reader:
    for message in reader:
        print(f"topic={message.topic} value='{message.value}'")

The entire code of the sample program consumer.py is available on GitHub.

First, create a MessageReader object to receive a message, specifying the service name in the argument. MessageReader is usually executed by Python’s with statement. As a result, connection and disconnection to/from the broker are executed at the boundary of the with block. The object named reader given by the with statement is iterable. The object named message given by the for statement is a message received from the broker.

Writer

In the writer sample program producer.py, the SINETStream API is used as follows.

with MessageWriter(service) as writer:
    while True:
        message = get_message()
        writer.publish(message)

The entire code of the sample program producer.py is available on GitHub.

First, create a MessageWriter object to send a message, specifying the service name in the argument. MessageWriter is usually executed by Python’s with statement. As a result, connection and disconnection to/from the broker are executed at the boundary of the with block. Send a message to the broker by invoking the publish(message) method of the object named writer given by the with statement.

Please refer to the user guide for more information about the SINETStream Python API.

4.3. SINETStream API (asynchronous API)

SINETStream v1.4 now supports asynchronous API. We have prepared sample programs on Github that executes the same processing as described above with asynchronous API.

*Reader *Writer

Reader (asynchronous API)

In the sample program consumer.py of the ‘Reader’ of the asynchronous API, We use the following example to show how to use SINETStream API.

reader = AsyncMessageReader(service)
reader.on_message = show_message
reader.open()

First, let’s create an ‘AsyncMessageReader’ object to receive the message. At that time, please specify the service name as an argument.

Next, specify the callback function to be called when a message is received in the ‘.on_message’ property. The callback function can receive the messages from the argument. The sample program uses the following callback function.

def show_message(message):
    ts = datetime.fromtimestamp(message.timestamp)
    print(f"[{ts}] topic={message.topic} value='{message.value}'")

Finally, you call reader ’.open()’ to connect to the broker.

Writer (asynchronous API)

In the sample program producer.py of the ‘Writer’ of the asynchronous API, we use the following example to show how to use SINETStream API.

with AsyncMessageWriter(service) as writer:
    while True:
        message = get_message()
        writer.publish(message)

First, create an ‘AsyncMessageWriter’ object for sending messages. At that time, specify the service name as an argument. ‘AsyncMessageWriter’ is usually executed by with statement of Python. This will connect to and disconnect from the broker within the block of the with statement. You can send a message to the broker by calling ‘.publish(message)’ on the value ‘writer’ which returned by the with statement.

In synchronous API, ‘.publish()’ blocks the sending process until it completed, but in asynchronous API, it returns without blocking the process. In addition, ‘.publish()’ of asynchronous API returns a Promise Object to specify the processing after the processing result is confirmed.
